Rainwater harvesting is an umbrella term to cover various techniques and strategies used for the collection and storage of rainwater. Rainwater can be collected from various surfaces and platforms, but most of the time it is collected from rooftops and other hard surfaces. Regions experience a wide range of temperatures throughout the year globally, so you may need to protect your rainwater harvesting system during freezing conditions. Empty My ECO Barrel™ unless it is installed in a way to stop freezing from occurring. My ECO Barrel™ can be cleaned and stored within minutes. If you use a pump or distribution system, you’ll need to winterize that equipment so it’s protected from the cold also.

Category:

Description

Rainwater is natural for watering plants, and it can easily be used for your indoor and outdoor gardens. You can use rainwater in watering cans to water plants by hand. You can also attach any size of My ECO Barrel™ directly to an irrigation system or pump system. Rainwater harvesting has a logical use for water conservation purposes, it also reduces energy use within a community. The rainwater that falls on your roof and property is essentially free. All it takes is a method to harvest it for later use. Rainwater harvesting can be a great educational tool to get people to recognize their individual or household water usage, which can get them to start conserving water in other areas around their home. For communities that rely on imported water to supply their needs, collecting rainwater that falls naturally in the community can reduce the need for imported water. Rainwater harvesting helps utilities reduce peak demands during summer months, saving treated water for more important and appropriate water uses. While rainwater can be a perfect primary water source for many uses and situations, it is also a great backup water supply for emergency situations. Rainwater harvesting can reduce stormwater runoff from a property. The elimination of runoff can reduce contamination of surface water from pesticides, sediment, metals, and fertilizers.

My ECO Barrel™: A 100% BPA Free Product

  • Site safety and precaution when assembling and using My ECO Barrel™ should always be observed
  • Always be careful when making any adjustments to any of the three outlets as not to over tighten them or loosen them by attaching connections
  • Do not move My ECO Barrel™ with rainwater inside; remove all water to avoid damaging the product
  • If cleaning is necessary, use a biodegradable dish soap with a cloth or sponge (do not use a brush)

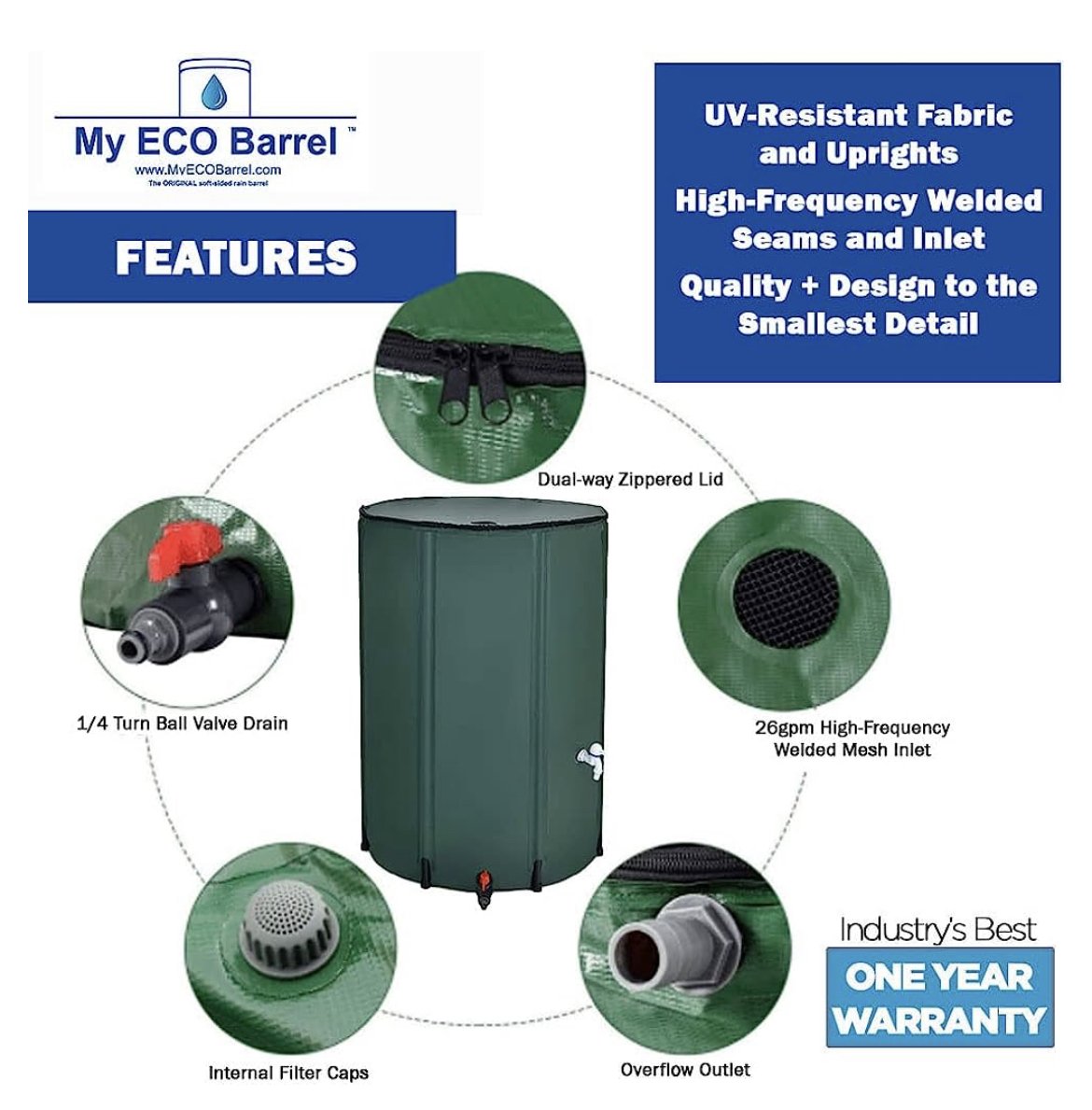

  • Contents include ClimaStruts™, 1/4-turn ball valve drain (assembly), 1/4-turn ball valve spigot (assembly) and an overflow (assembly)
  • Each assembly will contain two (2) rubber washers that have a smooth and a ribbed side (ribbed side is always installed against the ClimaFabric™)

Facts:

  • Best Warranty – 1 year Limited vs. 90-days or less for competing products
  • Structurally superior to competing products:
  1. 0.022in. (.55mm) ClimaFabric™ a reinforced UV resistant 500D PVC fabric with high frequency welded seams vs. competing products at .0.010in. (.25mm) or thinner and chemical seams

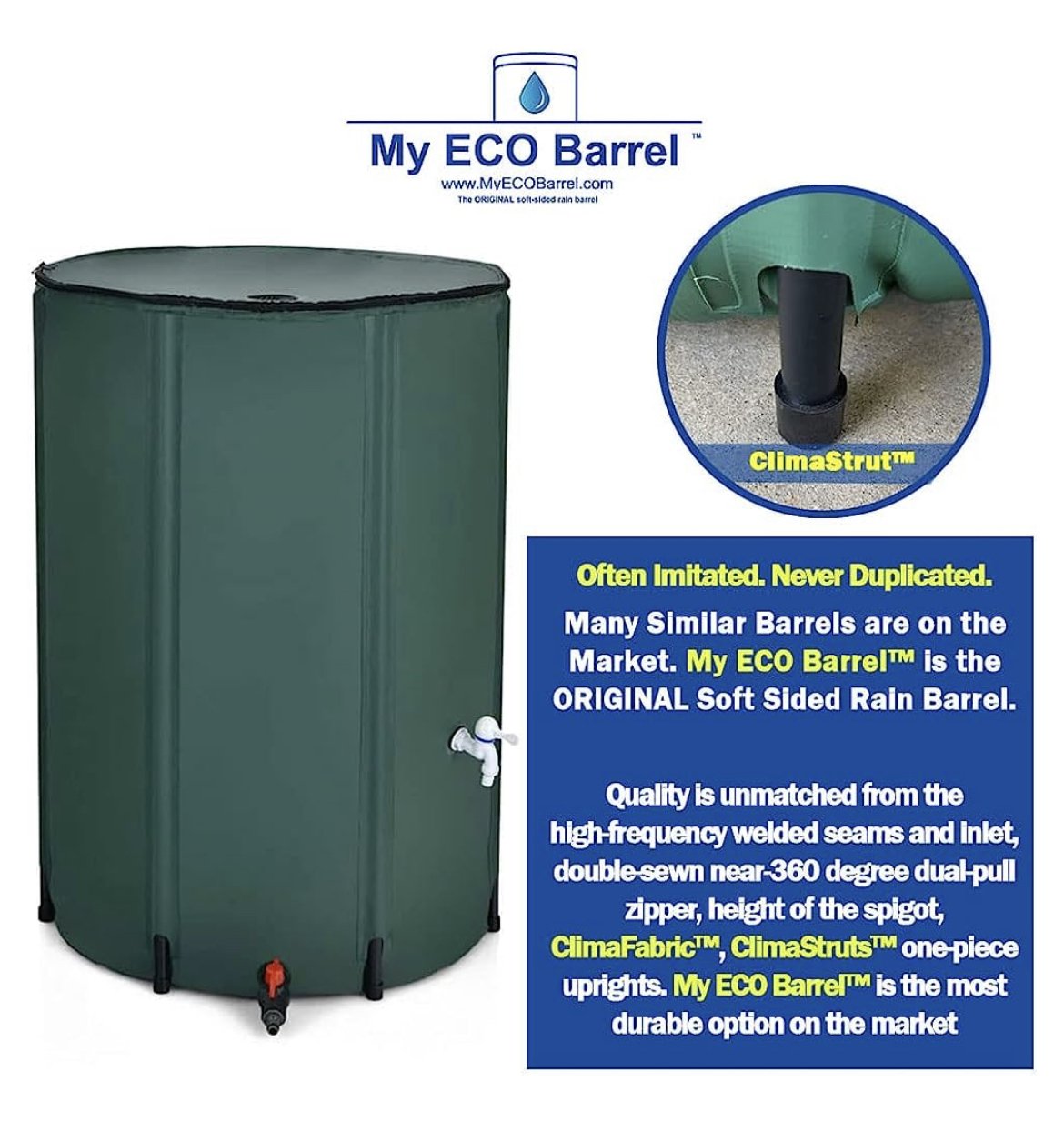

  2. ClimaStruts™are one-piece upright made with our proprietary formula for superior strength

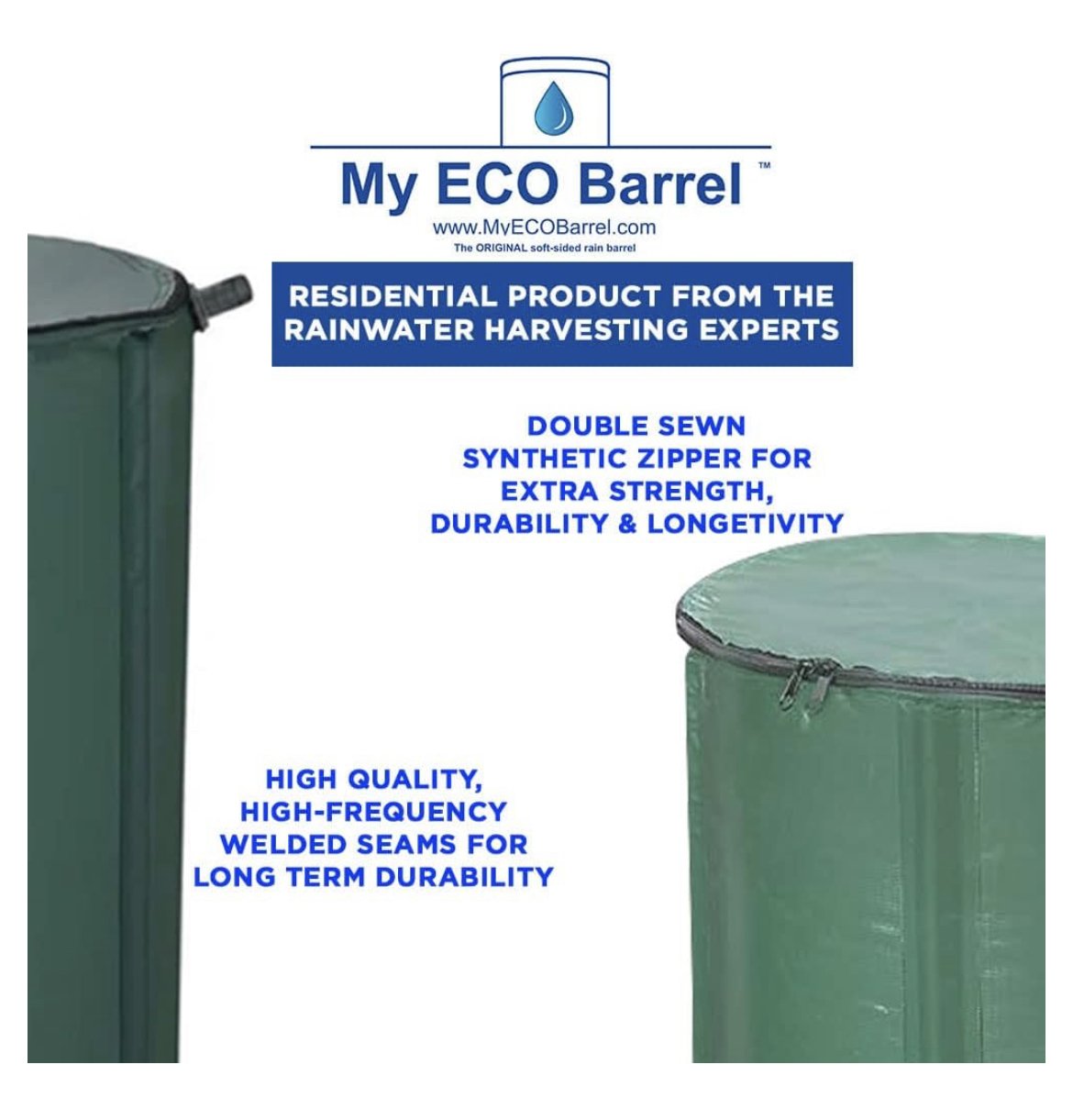

  3. A near 360-degree double sewn synthetic dual zipper and screened inlet in the lid
    Doesn’t require realignment to attach
    Can’t blow away

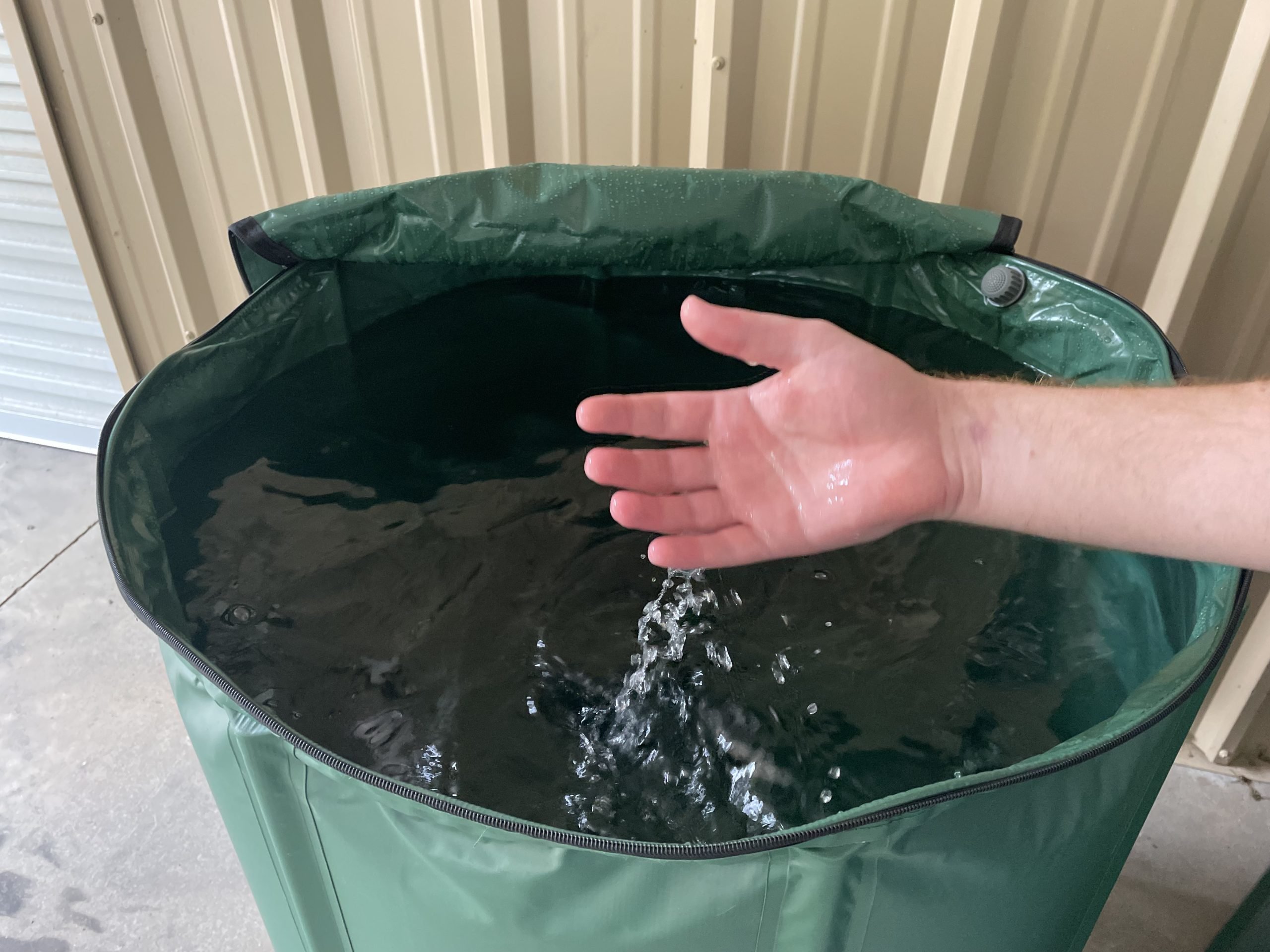

    Enables fast water can filling by dunking
    Inlet doubles as a vent or overflow if the overflow is used as a hose inlet from a rainwater harvesting pre filter
  4. Separate 1/4-turn spigot and 1/4-turn drain ball valve
  5. Spigot is 10in. (254mm) high so watering cans fit without the need to place barrel on a pedestal
  6. Screen cap filters on overflow, spigot and drain valve – prevent debris from blocking flow
  7. Drain ball valve is both threaded and comes with quick connect insert with O-ring
  8. ALL fittings come with dual rubber washers so no added sealant is necessary vs. competitors
  • Larger Capacity/Scale:
  1. Engineered for structural integrity to achieve larger capacity
  2. 132 gallons (500L) vs. 50 gallons (189L) max from most competitors
  • Highly Portable:
  1. Light-weight – 10lb. (4.536kg.) shipping weight – not heavy or bulky like competitors
  2. Foldable DesignCompresses easily for storage or transport
  • Easy Assembly in minutes and needs no blocking or pedestal:
  1. All parts included
  2. No tools necessary
  • Exceptionally durable:
  1. Aforementioned 0.022in. (.55mm) thick ClimaFabric™
  2. Reinforced UV resistant which reduces breakdown
  3. Synthetic zipper – no corrosion – double-sewn
  4. Corrosion resistant fitting
  5. Aforementioned ClimaStruts™ have superior strength and are UV resistant
  • Easy Maintenance:
  1. Clean with mild dish soap
  2. Zippered lid facilitates internal cleaning

Use Cases:

  • Irrigation or sprinkler system source
  • Gardening and composting
  • Pets, animals, wildlife, and livestock
  • Fire protection
  • Laundry and toilets
  • Pressure washer source for vehicles, equipment, and yard tools
  • Washing driveways, sidewalks, deck, patio, house, out buildings
  • Swimming pool and spa
  • Fountain, water feature, and fishpond
  • Drinking water if properly filtered and sanitized; always consult a professional
  • Emergency water



MEB_Assembly Guide_Final22

Specifications

My ECO Barrel™:

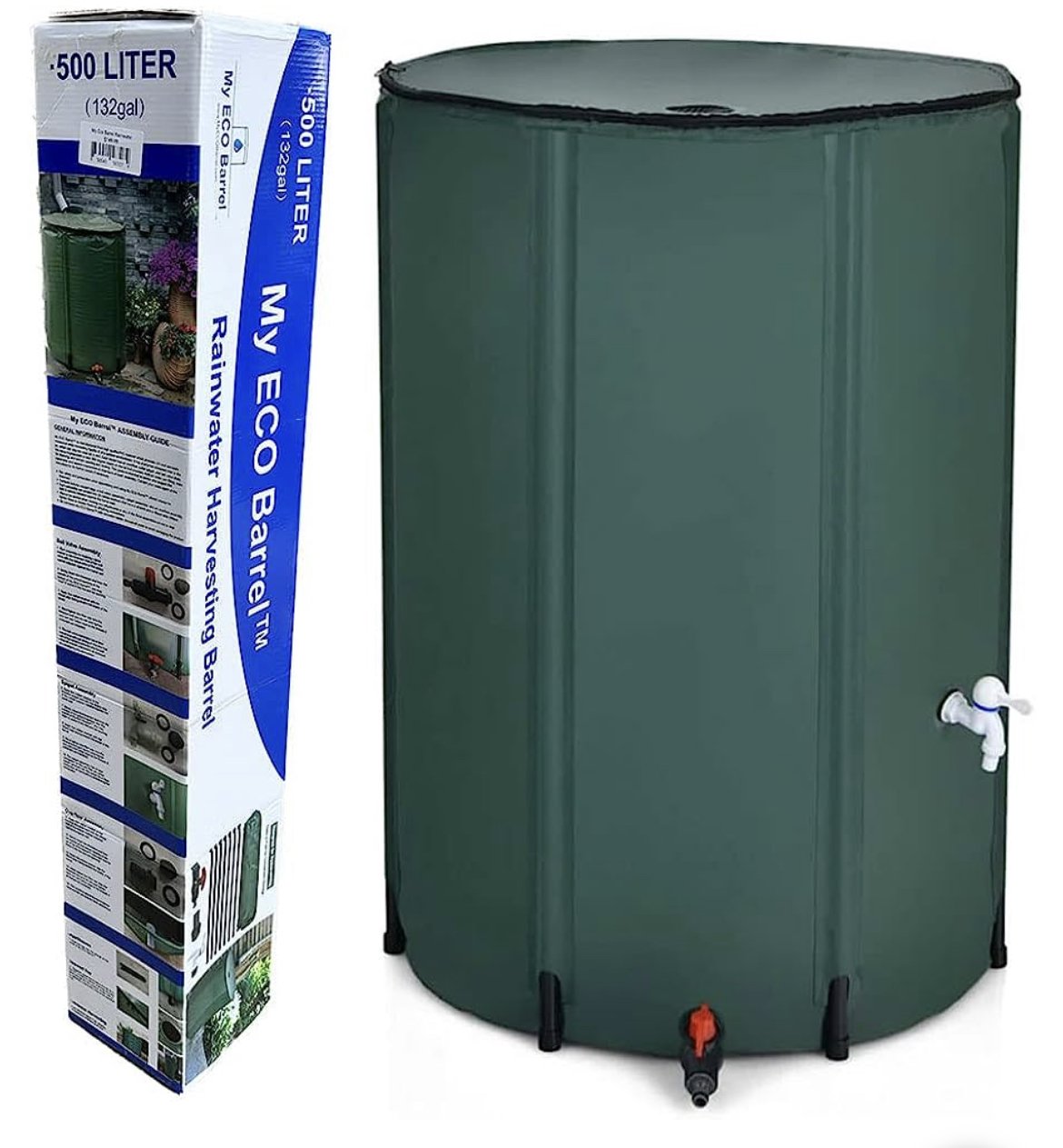

  • Capacity: 132 gallon (500L) the ORIGINAL soft-side rainwater harvesting barrel
  • Dimensions: 100in. circumference (2540mm.) x height 39in. (990.6mm.) x diameter 32in. 812.8mm; weight 10lbs. (4.536kg.) without water
  • Structure:  0.022in. (.55mm) ClimaFabric™ a UV resistant reinforced 500D PVC fabric with high frequency welded seams
  • ClimaStruts™ are one-piece legs made with our proprietary formula for superior strength
  • Outlets: PVC 1/4-turn drain ball valve with a removable quick connection fitting, PVC 1/4-turn spigot ball valve with removable compression fitting, PVC barbed overflow; all outlets have filter drain caps on the inside
  • Inlet: 2 7/8in. (73mm) screen in the near 360 degree double sewn zippered top
  • Packaging:  resell box width 6.5in. (165mm.) x height 39in. (990.6mm.) x depth 6.5in. (165mm.)
